Product Description:

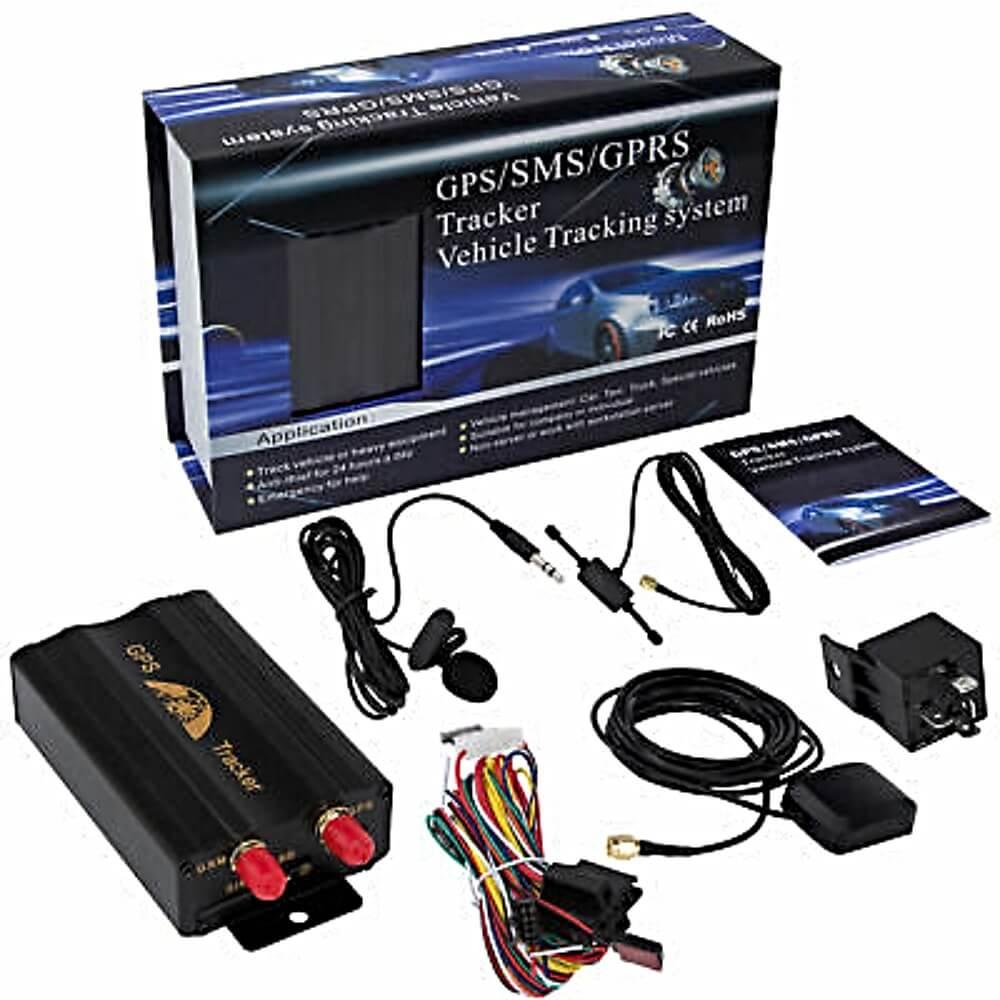

The TK103 Car GPS/GMS/GPRS Vehicle Tracking System is a compact and efficient device that enables real-time tracking and monitoring of vehicles. Leveraging GSM/GPRS networks and GPS satellites, it provides accurate location data accessible via SMS or GPRS.
Key Features:
- Real-time GPS tracking via SMS or GPRS.
- Supports GSM frequencies: 900/1800 MHz or 850/900/1800/1900 MHz.
- Utilizes Ublox GPS chip for precise location data.
- Compact dimensions: 85mm x 63mm x 25mm; lightweight at 160g.
- Geofence functionality to establish virtual boundaries and receive alerts.
- Overspeed alarm to notify when preset speed limits are exceeded.
- Movement alert to detect unauthorized vehicle movement.
- Low battery warning when device battery is near depletion.
- SOS emergency button for immediate assistance requests.
- Remote engine cut-off to disable the vehicle's engine via SMS.
- Data logging capabilities to record travel history.
- Supports both "Track" and "Monitor" modes for flexible operation.
Specifications:
- Network: GSM/GPRS
- GPS Chip: Ublox
- GSM Module: Simcom840W
- GPS Sensitivity: -159dBm
- GPS Accuracy: Up to 5 meters
- Operating Voltage: 9V to 36V DC
- Backup Battery: 3.7V 800mAh rechargeable lithium battery
- Operating Temperature: -20°C to +70°C
- Storage Temperature: -40°C to +85°C
- Humidity: 5% to 95% non-condensing
- SIM Card: Standard size
- Dimensions: 85mm (L) x 63mm (W) x 25mm (H)
- Weight: 160g
