Product Description

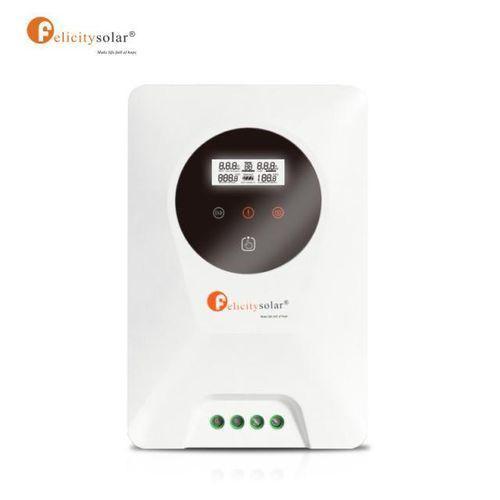

The Felicity Solar 60A MPPT Solar Charge Controller is an advanced power management device designed to optimize the performance of off-grid solar power systems. Utilizing Maximum Power Point Tracking (MPPT) technology, it ensures efficient energy conversion and maximizes battery life. With its versatile compatibility, it supports 12V, 24V, and 48V systems, making it suitable for various solar applications.
Key Features
- MPPT Technology: Increases energy harvest by up to 25%–30% compared to traditional PWM controllers.
- High Efficiency: Achieves up to 98% peak conversion efficiency.
- Multi-Stage Charging: Supports Bulk, Absorption, and Float charging stages for optimal battery performance.
- Wide System Compatibility: Automatically detects and supports 12V, 24V, and 48V battery systems.
- High Charging Capacity: Delivers a maximum charging current of 60A.
- LCD Display: Provides real-time system status, including charge voltage, battery voltage, and output current.
- Battery Type Flexibility: Compatible with various battery types, including lead-acid, AGM, gel, and lithium.
- Reverse Polarity Protection: Prevents damage from incorrect wiring.
- Overcharge and Overdischarge Protection: Safeguards batteries from potential damage due to overcharging or excessive discharging.
- Over-Temperature Protection: Ensures safe operation in varying environmental conditions.
- Remote Monitoring Capability: Supports RS485 communication for remote monitoring and control.
- User-Friendly Interface: Simplifies setup and operation for both professionals and DIY enthusiasts.
Specifications
- Model: SCCM6048
- Maximum Solar Input Voltage: 145V DC
- Nominal System Voltage: 12V, 24V, or 48V DC (Auto detection)
- Maximum Battery Current: 60A
- DC Array MPPT Voltage Range:
- 12VDC: 15–115V
- 24VDC: 30–115V
- 48VDC: 60–115V
- Maximum Input Power:
- 12V: 825W
- 24V: 1650W
- 48V: 3300W
- Charging Algorithm: 3-Step (Bulk, Absorption, Float)
- Temperature Compensation Coefficient: -5mV/°C/cell (25°C reference)
- Temperature Compensation Range: 0°C to +50°C
- Charging Set Points:
- Flooded Battery: 14.6V/29.2V/58.4V (Bulk/Absorption/Float)
- AGM/Gel Battery: 14.1V/28.2V/56.4V (Bulk/Absorption/Float)
- Overcharge Voltage: 15V/30V/60V
- Overcharge Restart Voltage: 14.5V/29V/58V
- Battery Discharge Voltage: 8.5V/17V/34V
- Battery Overdischarge Voltage: 9V/18V/36V
- Product Dimensions (H x W x D): 283 x 160 x 105 mm
- Product Weight: 4.0 kg
- Ambient Temperature Range: 0°C to +55°C
- Storage Temperature: -40°C to 75°C
- Humidity: 0%–90% RH (No condensing)
- Enclosure: IP31 (Indoor & Vented)
