Product Details

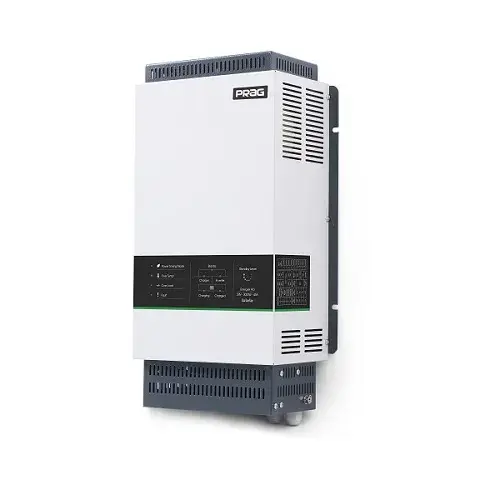

The Prag PT-INV 4kVA/24V inverter features a pure sine wave output, ensuring clean and stable power for sensitive electronics. It is designed for wall mounting, providing a space-saving solution. The inverter comes with color LED indicators for easy monitoring and includes AC and DC cables for straightforward installation. With built-in protection against overload, short circuit, and overheating, it ensures reliable performance. This inverter is ideal for home and small office use, providing efficient energy management.
Key Features
- Pure Sine Wave Output: Ideal for powering sensitive devices without interference.
- Wall Mount Design: Saves space and allows for flexible installation.
- Color LED Indicators: Easy monitoring of operational status.
- AC and DC Cables Included: Simplifies installation and setup.
- Overload Protection: Automatically shuts down to prevent damage.
- Short Circuit Protection: Safeguards the inverter from electrical faults.
- Overheating Protection: Ensures safe operation under varying conditions.
- High Efficiency: Provides maximum energy output with minimal losses.
- User-Friendly Interface: Simplified controls for ease of use.
- Compact Design: Lightweight and easy to install in any setting.
- Battery Compatibility: Works with various 24V battery types.
- Reliable Performance: Designed for continuous operation in demanding environments.
Specifications
- Rated Power: 4000VA / 4000W
- Input Voltage: 24VDC
- Output Voltage: 230VAC ± 5%
- Output Frequency: 50Hz
- Efficiency: Up to 90%
- Idle Power Consumption: 30W
- Surge Power: 8000W (for 20 seconds)
- Dimensions (WHD): 350mm x 350mm x 120mm
- Weight: 8 kg
- Cooling Method: Natural cooling with temperature-controlled fan
- Operating Temperature: 0°C to 40°C
- Humidity Range: 5% to 95% (non-condensing)
- Certifications: CE, RoHS compliant
