Product Description

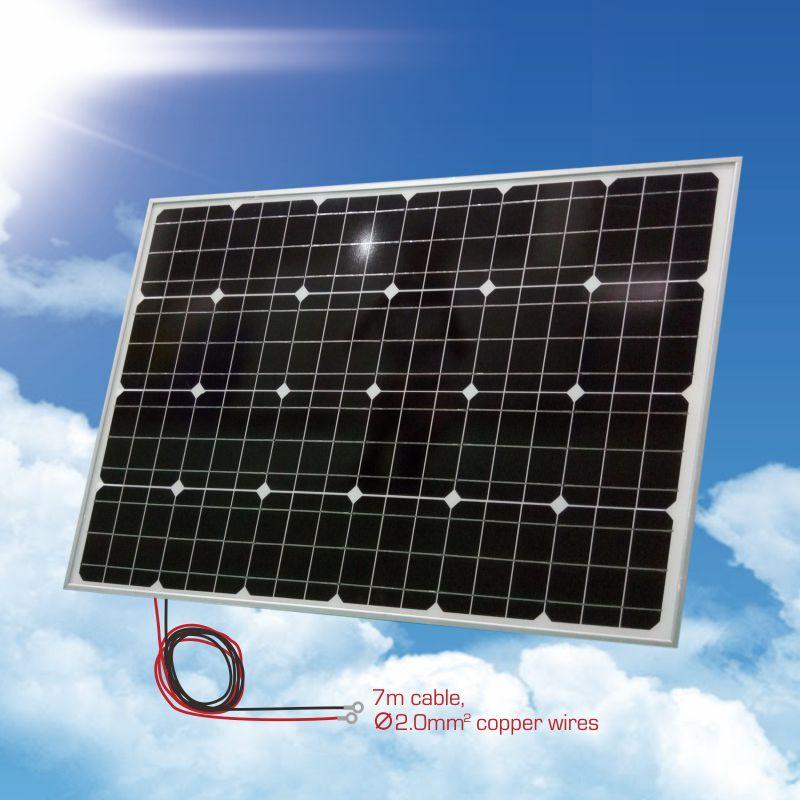

The Qasa 150W Solar Panel (QSP-150W18) is designed for high-efficiency energy generation using advanced monocrystalline solar cells. This robust panel is ideal for both residential and commercial applications, providing reliable power in various environments.
Key Features
- Maximum power output of 150W for substantial energy production.
- Nominal voltage of 18V, perfect for powering larger devices and systems.
- High current output with a maximum power current (Imp) of 8.33A.
- Open circuit voltage (Voc) of 21.6V for efficient energy transfer.
- Short circuit current (Isc) of 8.91A for dependable performance.
- Exceptional temperature tolerance, operating between -30°C and 200°C.
- Durable aluminum frame (30mm) for enhanced structural integrity.
- Weather-resistant EVA laminate for long-lasting protection.
- Dimensions of 1480 x 680 x 30 mm for efficient installation in various settings.
- Includes 7 meters of 2*2mm² installation wire for easy connectivity.
- Copper wires with dimensions A=B=6mm for reliable electrical flow.
- Connector type: 3.5-6 terminal for compatibility with various systems.
Specifications
- Maximum Power: 150W
- Maximum Power Voltage (Vmp): 18V
- Maximum Power Current (Imp): 8.33A
- Open Circuit Voltage (Voc): 21.6V
- Short Circuit Current (Isc): 8.91A
- Maximum Operating Temperature: -30°C to 200°C
- Aluminum Frame: 30mm
- Laminate Material: EVA
- Dimensions: 1480 x 680 x 30 mm
- Installation Wire Size: 2*2mm², 7m length
- Copper Wires: A=B=6mm
- Weight: 10.5 kg
- Connector Type: 3.5-6 terminal
