Product Details

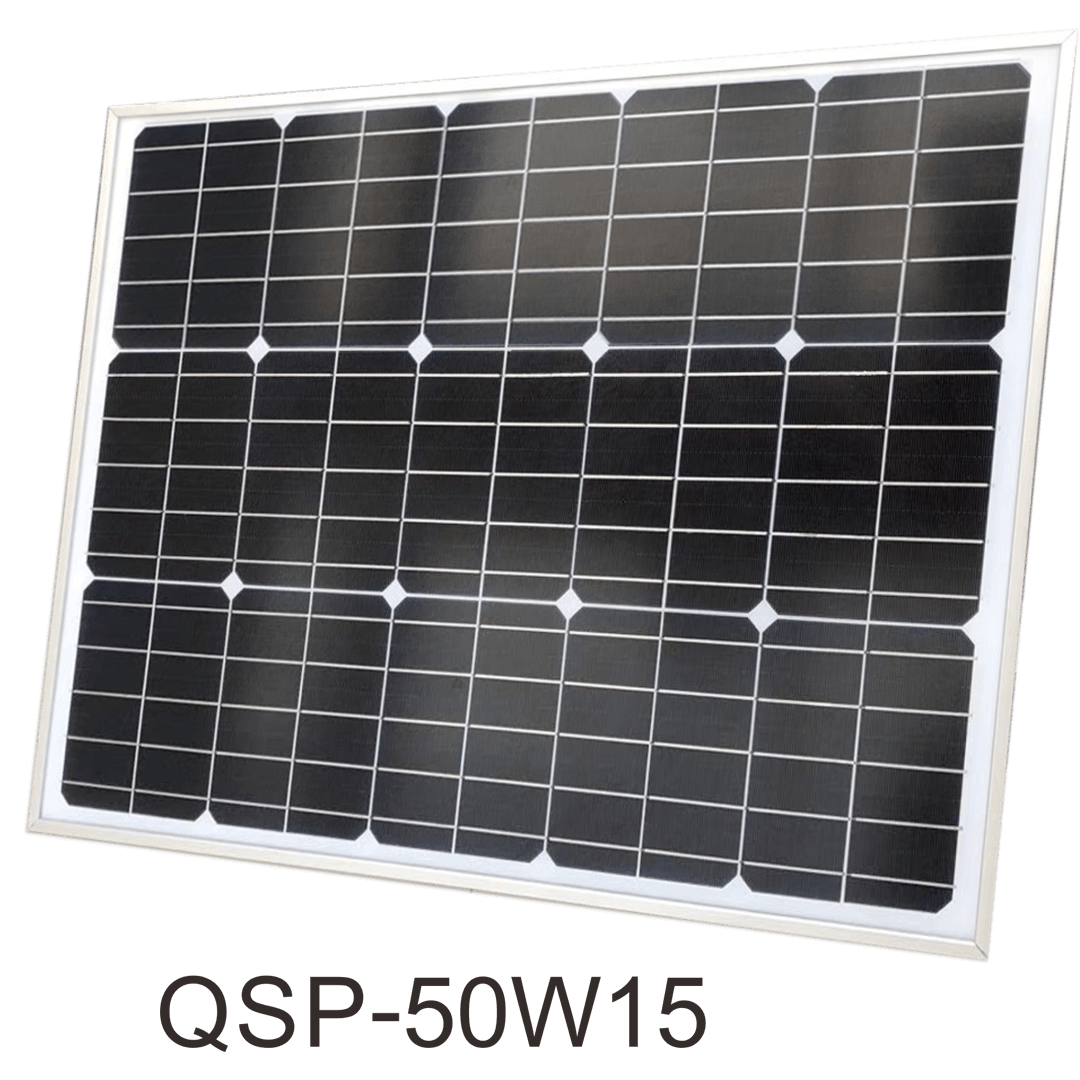

The Qasa 50W Monocrystalline Solar Panel delivers reliable solar power with a maximum output of 50W. It operates at 15V and 3.33A, with an open circuit voltage of 18V and a short circuit current of 3.57A. Designed to withstand temperatures from -40°C to 85°C, this panel is built with a durable 30mm aluminum frame and high-performance EVA laminate. Compact at 690mm x 510mm x 30mm, it’s lightweight (3.9kg) and includes 6 meters of copper installation wires (2*1.5mm²) for easy setup. The crimping connector ensures secure connections for a variety of applications.
Key Features
- 50W Power Output: Reliable solar energy for off-grid or portable setups.
- 15V Max Power Voltage: Consistent energy generation.
- 3.33A Max Power Current: Steady current flow for devices.
- 18V Open Circuit Voltage: High voltage output for optimal performance.
- 3.57A Short Circuit Current: Safe overcurrent protection.
- Temperature Range: -40°C to 85°C for all-weather use.
- Durable Aluminum Frame: 30mm thick for long-lasting outdoor use.
- EVA Laminate: Enhances light transmission and panel longevity.
- Compact Size: 690mm x 510mm x 30mm for tight spaces.
- Lightweight: Weighs only 3.9kg, easy to transport.
- 6-Meter Copper Wires: 2*1.5mm² wires for easy installation.
- Crimping Connector: Secure and stable electrical connection.
Specifications
- Solar Cell Type: Monocrystalline
- Max Power Output: 50W
- Max Power Voltage: 15V
- Max Power Current: 3.33A
- Open Circuit Voltage: 18V
- Short Circuit Current: 3.57A
- Operating Temperature: -40°C to 85°C
- Frame: 30mm aluminum
- Laminate: EVA
- Dimensions: 690mm x 510mm x 30mm
- Weight: 3.9kg
- Connector: Crimping
- Install Wires: 2*1.5mm², 6m
