Product Description:

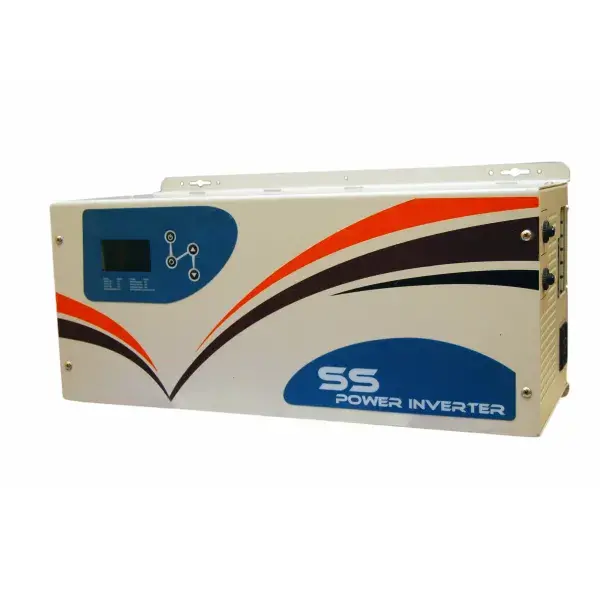

The SS Power 10kVA/96V Pure Sine Wave Inverter (NB) provides reliable, high-efficiency power conversion for homes, businesses, and industrial applications. This inverter boasts a high 10kVA power rating and a 96V DC input, ensuring stable and uninterrupted power for sensitive equipment. Equipped with a pure sine wave output, it ensures smooth and efficient operation, making it ideal for sensitive electronics. Whether you're off-grid or in need of backup power, this inverter guarantees top-notch performance with advanced protection features.
Key Features:
10kVA Power Output: Provides 10kVA (8000W) of continuous power for handling large and demanding loads.
96V DC Input: Compatible with a 96V battery system for higher voltage, ensuring efficient power conversion and longer battery life.
Pure Sine Wave Output: Delivers clean and stable AC power, ideal for sensitive appliances and high-end electronics.
Surge Capacity: Handles surge loads of up to 15kVA, supporting high startup demands of certain appliances.
High Efficiency: More than 90% energy conversion efficiency reduces energy waste and lowers electricity costs.
Integrated 20A Battery Charger: Efficiently charges the connected 96V battery bank to ensure continuous operation.
Advanced Protection Mechanisms: Features overcurrent, overload, short circuit, undervoltage, and overvoltage protection for enhanced safety.
Intelligent Cooling System: Automatically adjusts fan speeds to maintain optimal temperature and performance.
LCD Display Panel: Displays key metrics such as battery voltage, output voltage, current, and system status for easy monitoring.
Easy Installation: User-friendly interface with simple connections for faster setup and operation.
Versatile Application: Perfect for residential, commercial, industrial, and off-grid power solutions.
Compact and Durable: Designed to withstand rugged environments and ensure long-term reliability.
Environmentally Friendly: Low harmonic distortion and efficient design contribute to energy savings and environmental sustainability.
Specifications:
Model: SS Power 10kVA/96V Pure Sine Wave Inverter (NB)
Power Output: 10kVA (8000W continuous)
Input Voltage: 96V DC
Output Voltage: 230V AC (single phase)
Output Type: Pure sine wave (stable, clean power for sensitive devices)
Frequency: 50Hz ± 0.5Hz
Surge Capacity: 15kVA for 5 seconds
Efficiency: ≥ 90% (at full load)
Battery Charger: Built-in 20A charger
Cooling System: Intelligent fan-based cooling with automatic speed adjustment
Protections: Overload, short circuit, over/under voltage, over temperature, and reverse polarity protection
LCD Display: Shows voltage, current, battery level, system status, and any error codes
Dimensions: 485 x 430 x 180 mm (W x D x H)
Weight: 20 kg
Operating Temperature: 0°C to 50°C
Humidity: 0 to 95% RH (non-condensing)
Certifications: CE, ISO 9001 certified for quality and safety assurance
Warranty: 2 years from the date of purchase
