Product Description:

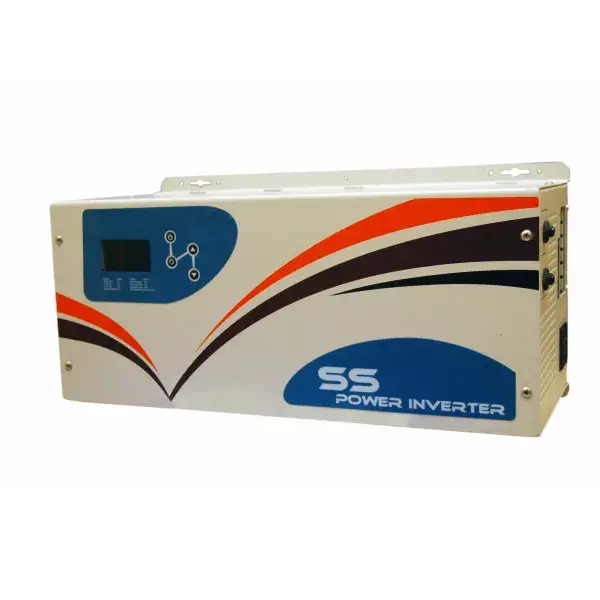

The SSPower 5kVA/24V Pure Sine Wave Inverter is a robust, high-performance inverter designed to convert 24V DC battery power into reliable 230V AC power for various applications. With a continuous output of 5kVA (5000W), this inverter is ideal for off-grid systems, residential backup power solutions, and solar power setups. It provides pure sine wave output, ensuring clean, smooth, and stable power for sensitive electronics, including computers, televisions, and medical devices. The inverter features high surge capacity, energy efficiency, and multiple protection mechanisms to ensure safe and reliable operation.
Key Features:
5kVA Capacity: Provides 5000W of continuous power to run medium to large appliances and devices.
24V DC Input: Designed for use with 24V battery systems, making it perfect for off-grid power solutions and backup power.
Pure Sine Wave Output: Offers clean and stable AC power, preventing distortion that could damage sensitive devices such as electronics, audio equipment, and medical devices.
High Surge Capacity: Can handle surge loads up to 10kVA (10,000W), making it ideal for appliances with high startup demands like air conditioners, refrigerators, and pumps.
Overload Protection: Automatically shuts down the inverter if it exceeds its safe load capacity to protect both the inverter and connected devices.
Short-Circuit Protection: Safeguards the system from short circuits, ensuring both inverter and appliances are protected.
Over-temperature Protection: Built-in thermal protection prevents the inverter from overheating during extended use.
Energy Efficient: ≥ 90% efficiency minimizes energy loss, ensuring maximum power use and extending battery life.
Cooling Fan: Equipped with an active cooling fan to manage heat dissipation, keeping the inverter operating efficiently.
Compact Design: Rugged, space-saving design suitable for both residential and commercial installations.
Low Idle Power Consumption: Reduces energy drain when no load is applied, ensuring the inverter is as efficient as possible.
Quiet Operation: Designed for low noise output, making it ideal for use in noise-sensitive environments.
User-Friendly Interface: Simple to use with clear status indicators for easy monitoring and operation.
Specifications:
Model: SSPower 5kVA/24V Pure Sine Wave Inverter.
Rated Power: 5kVA (5000W).
Input Voltage: 24V DC (compatible with 24V battery systems).
Output Voltage: 230V AC (standard mains voltage).
Waveform: Pure sine wave for distortion-free power.
Surge Power: 10kVA (10,000W) for handling high surge loads.
Output Frequency: 50Hz (standard frequency).
Efficiency: ≥ 90% for optimal energy use and reduced power loss.
Cooling Method: Active fan cooling system for better thermal management.
Protection Features: Over-voltage, under-voltage, overload, short-circuit, and over-temperature protection.
Operating Temperature: -10°C to +50°C for reliable performance in various environments.
Dimensions: 460mm (L) x 250mm (W) x 120mm (H).
Weight: Approximately 8kg.
Warranty: 1-year limited warranty.
