Product Description:

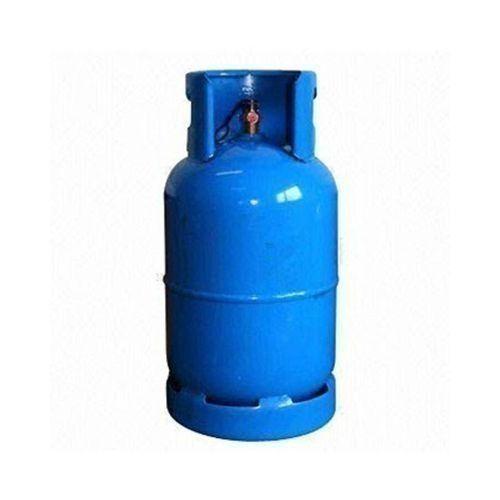

The Empty 12.5kg LPG Gas Cylinder is a high-quality steel container designed for the storage and transportation of liquefied petroleum gas (LPG). Crafted from durable HP295 steel, it ensures longevity and resistance to pressure. With a water capacity of 26.5 liters and a nominal working pressure of 2.1MPa, this cylinder is suitable for various domestic and commercial applications.
Key Features:
- Constructed from high-strength HP295 steel for enhanced durability.
- Water capacity of 26.5 liters, accommodating up to 12.5kg of LPG.
- Nominal working pressure of 2.1MPa, suitable for medium-pressure applications.
- Compact dimensions with a height of 582mm and an outside diameter of 294mm for easy handling and storage.
- Designed with a base diameter of 300mm and a shroud diameter of 220mm for stability and protection.
- Manufactured with a design wall thickness of 2.9mm to withstand internal pressures.
- Tested at a pressure of 3.2MPa to ensure safety and reliability.
- Equipped with a valve and regulator for precise gas flow control.
- Meets international quality standards, including CE, TPED, DOT, and GB certifications.
- Available in various colors upon customer request for easy identification.
- Suitable for refillable use, promoting cost-effectiveness and environmental sustainability.
- Ideal for residential kitchens, commercial establishments, and outdoor cooking applications.
Specifications:
- Material: HP295 steel.
- Water Capacity: 26.5 liters.
- Height: 582mm.
- Outside Diameter: 294mm.
- Base Diameter: 300mm.
- Shroud Diameter: 220mm.
- Design Wall Thickness: 2.9mm.
- Working Pressure: 2.1MPa.
- Test Pressure: 3.2MPa.
- Valve and Regulator: Included for gas flow control.
- Certifications: CE, TPED, DOT, GB.
- Color Options: Customizable upon request.
- Refillable: Yes.
