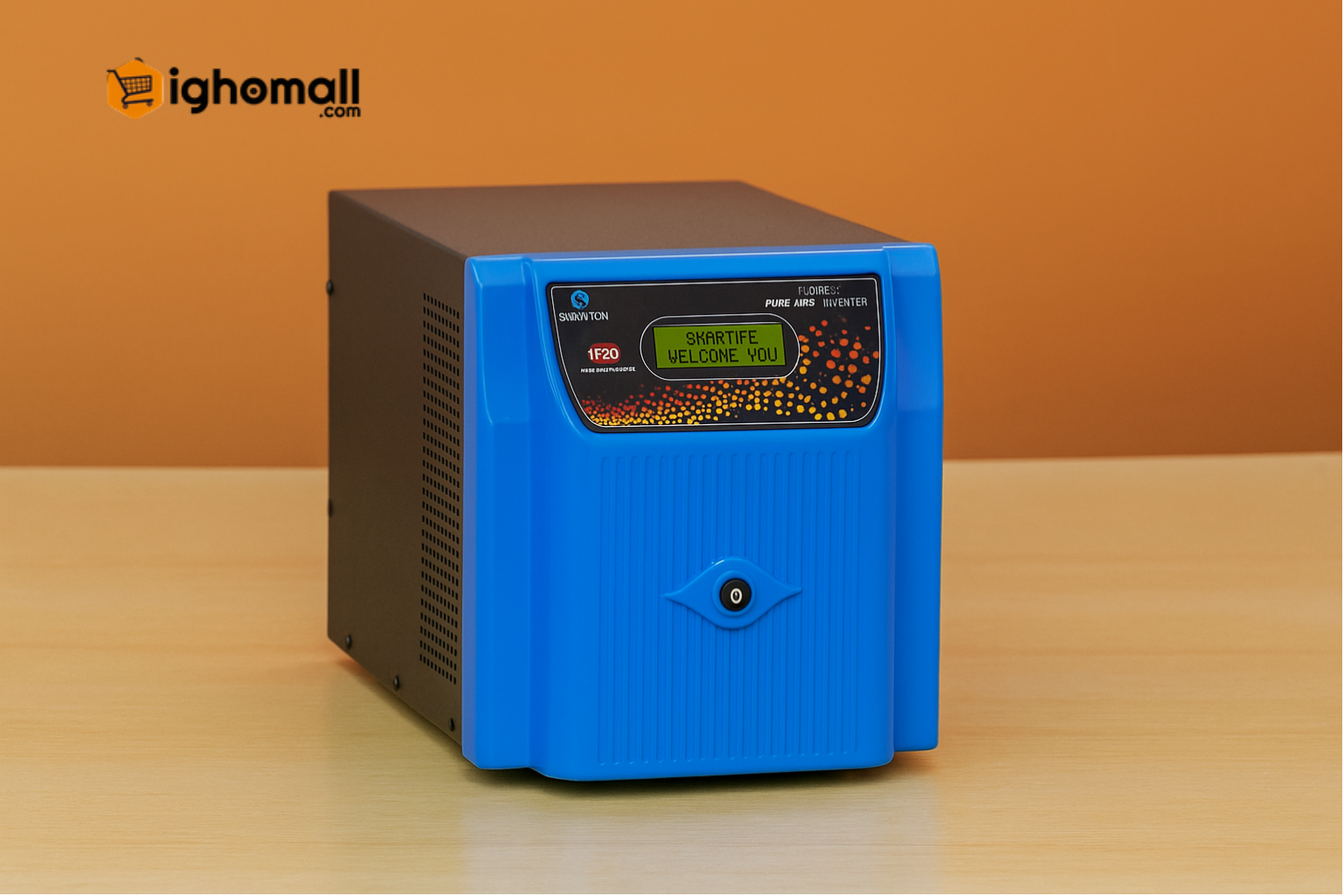

Smarten 1.7kVA 24V Pure Sine Wave Inverter

Product Description:
The Smarten 1.7kVA 24V Pure Sine Wave Inverter is a high-efficiency power inverter that converts 24V DC battery power into clean, stable, and reliable AC power. With a capacity of 1.7kVA (1700W), it is suitable for powering a variety of household appliances, office equipment, and off-grid systems. The pure sine wave output ensures compatibility with sensitive electronics, offering superior protection against power fluctuations. Its compact and durable design, along with built-in safety features, make this inverter ideal for off-grid, backup, and solar power applications.

Key Features:

• 1.7kVA Capacity: Powers a wide range of devices with a continuous load of 1700W.
• 24V DC Input: Works with 24V battery systems for efficient energy conversion.
• Pure Sine Wave Output: Provides clean, stable, and safe power for sensitive electronics such as laptops, TVs, and medical devices.
• High Surge Power: Capable of handling surge loads of up to 3.4kVA (3400W) for powering high-startup appliances like refrigerators or air conditioners.
• Overload Protection: Automatically shuts down the inverter to protect it from damage in the event of an overload.
• Short-Circuit Protection: Prevents damage from short circuits to the inverter and connected equipment.
• Efficient Conversion: High conversion efficiency, ensuring minimal energy loss and longer battery life.
• Built-in Cooling Fan: Active cooling system to ensure safe operation during extended use.
• Compact and Lightweight: Designed for easy installation in tight spaces or portable setups.
• Multiple Safety Features: Includes over-voltage, under-voltage, over-temperature, and overload protection.
• User-Friendly Interface: Clear indicators and simple setup for easy operation and monitoring.
• Low Idle Power Consumption: Energy-efficient design reduces power consumption when no load is applied.
• Durable and Reliable: Built to perform consistently in challenging environments and conditions.
• Quiet Operation: Runs quietly, making it ideal for residential use, RVs, and recreational vehicles.

Specifications:

• Model: Smarten 1.7kVA 24V Pure Sine Wave Inverter.
• Rated Power: 1.7kVA (1700W).
• Input Voltage: 24V DC (compatible with 24V battery systems).
• Output Voltage: 230V AC (standard mains voltage).
• Waveform: Pure sine wave for clean, stable, and reliable power.
• Surge Power: 3.4kVA (3400W) for handling high-startup loads.
• Output Frequency: 50Hz (standard frequency).
• Efficiency: ≥ 90% for optimal energy conversion.
• Cooling Method: Active cooling with a built-in fan for thermal management.
• Protection Features: Over-voltage, under-voltage, overload, short-circuit, and over-temperature protection.
• Operating Temperature: -10°C to +50°C for reliable operation in various environments.
• Dimensions: 330mm (L) x 200mm (W) x 100mm (H).
• Weight: Approximately 4.2kg.
• Warranty: 1-year limited warranty.
