Product Details

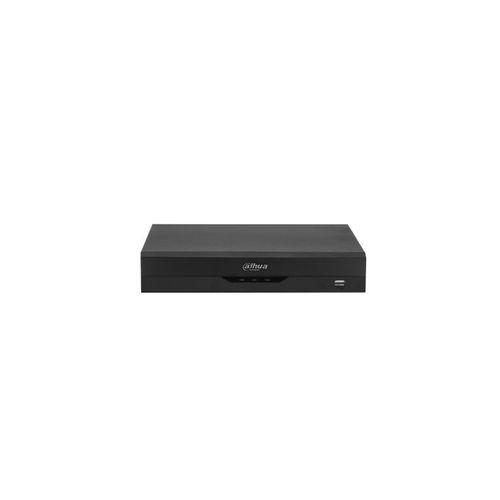

The Dahua 16-Channel HD Digital Video Recorder (DVR) is a robust, professional-grade solution for large-scale surveillance. Supporting up to 16 cameras, this DVR is compatible with HDCVI, AHD, HDTVI, analog, and IP cameras, offering seamless integration and future-proof flexibility. With HD and 4K recording, advanced video compression, smart motion detection, and remote access, the Dahua 16-Channel DVR ensures reliable, 24/7 security monitoring and easy playback for businesses, institutions, and large properties.
Key Features
16-channel video recording with up to 4K (8MP) resolution
Penta-brid support: HDCVI, AHD, HDTVI, CVBS, and IP cameras
Smart H.265+/H.265/H.264+ video compression for efficient storage
Dual-stream video recording
HDMI and VGA outputs, up to 4K display
1U rack-mountable design for easy installation
1 or 2 SATA HDD slots, supports up to 10TB+ storage
Smart motion detection, video loss, and tamper alerts
Remote viewing via mobile app (iOS/Android) and PC
USB and network backup options
User-friendly interface with OSD
Long-distance video transmission over coaxial cable
IoT and POS integration (select models)
Smart search and intelligent video analytics
Specifications
Video Inputs: 16 channels (BNC)
Supported Cameras: HDCVI/AHD/TVI/CVBS/IP
Max IP Camera Input: 16+16 channels, up to 8MP
Max Recording Resolution: 4K (8MP)
Video Compression: Smart H.265+, H.265, H.264+, H.264
Display Resolution: Up to 4K UHD
Audio In/Out: 16/1 (RCA)
Storage: 1 or 2 SATA HDD, up to 10TB+
USB Ports: 2 x USB 2.0
Network: 1 x RJ-45 (100M/1000M)
Power Supply: DC12V
Operating Temperature: -10°C ~ +55°C
Dimensions: ~1U rackmount, compact
Weight: ~1.5kg (without HDD)
