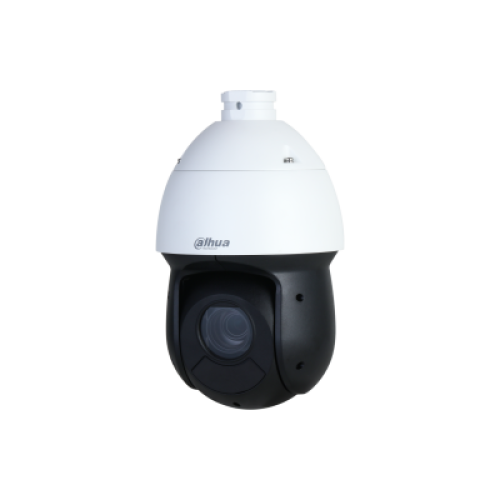

DH-SD49225DB-HNY PTZ Camera
Product Overview: The DH-SD49225DB-HNY is a high-performance IP PTZ (Pan-Tilt-Zoom) camera designed for versatile surveillance applications. With its advanced features, including a 2 MP CMOS sensor and 25x optical zoom, this camera is ideal for detailed monitoring across various environments.
Key Features:
- Type: IP PTZ Camera
- Image Sensor: 1/2.8" CMOS for high-definition image capture.
- Resolution: Maximum resolution of 1920 × 1080 (1080P) for clear video quality.
Lens:
- Focal Length: 4.8 mm–120 mm
- Max Aperture: F1.6–F3.5
- Optical Zoom: 25x
- Field of View:
- Horizontal: 58.5°–2.8°
- Vertical: 33.2°–1.5°
- Diagonal: 67.5°–3.2°
- Close Focus Distance: 0.1 m–1.5 m (0.33 ft–4.92 ft)
Illumination:
- Minimum Illumination:
- Color: 0.005 Lux @ F1.6
- B/W: 0.0005 Lux @ F1.6
- IR Light: 0 Lux (IR light on)
- Illumination Distance: Up to 100 m (328.08 ft) with IR
- Illuminator Control: Zoom Priority, Manual, Smart IR with 3 IR illuminators
PTZ Specifications:
- Pan/Tilt Range:
- Pan: 0° to 360° (endless)
- Tilt: -15° to +90° (auto flip 180°)
- Manual Control Speed:
- Pan: 0.1°/s–80°/s
- Tilt: 0.1°/s–80°/s
- Preset Speed:
- Presets: 300
- Tours: 8 tours with up to 32 presets per tour
- Power-off Memory: Supported
- Idle Motion: Preset, Pattern, Tour, Scan
- PTZ Protocol: Compatible with DH-SD, Pelco-P/D (Auto recognition)
Intelligence:
- IVS (Intelligent Video Surveillance): Supports perimeter protection features such as tripwire, intrusion detection, and more.
- Face Detection: Captures images and enhances face details.
- SMD 3.0 (Smart Motion Detection): Enhanced motion detection capabilities.
- Auto Patrol: Automatically patrols based on preset positions when a target is detected.
Video Performance:
- Video Compression: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG (Sub Stream)
- Streaming Capability: 3 streams
- Resolution Options: From 1080p to CIF
- Video Frame Rate: Main stream adjustable from 1 to 30 fps
- Day/Night Mode: Auto (ICR), Color, B/W
- WDR (Wide Dynamic Range): 120 dB for enhanced image quality
- Noise Reduction: 2D NR, 3D NR
- Digital Zoom: 16x
- Privacy Masking: Up to 24 areas
Audio:
- Audio Compression: Supports various formats including G.711, G.726, and more
- Audio Input/Output: 1 channel each
Network:
- Network Port: RJ-45 (10/100 Base-T)
- Protocols: Comprehensive support including HTTP, HTTPS, RTSP, DHCP, and more
- Interoperability: ONVIF compliant
- User/Host Capacity: 20 users
Power:
- Power Supply: 12 VDC/3 A (± 10%), PoE (802.3at)
- Power Consumption:
- Basic: 12 W
- Max: 20 W (with IR light)
Environmental Specifications:
- Operating Temperature: -40 °C to +60 °C
- Protection: IP66 rated, with lightning and surge protection
Physical Dimensions:
- Dimensions: 270.4 mm × Φ160.0 mm (10.65" × Φ6.30")
- Weight: 2.4 kg (net), 3.9 kg (gross)
Certifications:
- CE: Compliant with EN standards
- FCC: Compliant with Part 15 subpart B
This camera is tailored for robust performance in diverse surveillance settings, ensuring reliability and clarity in monitoring.
