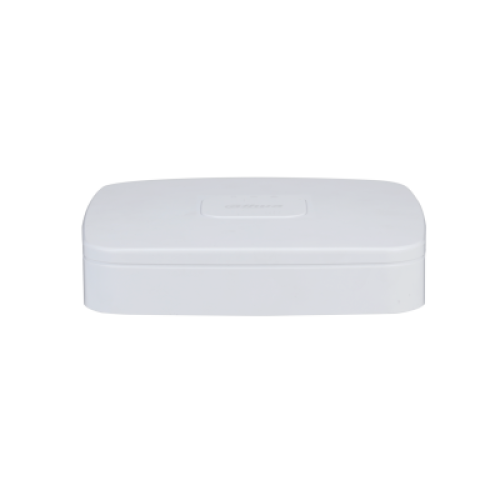

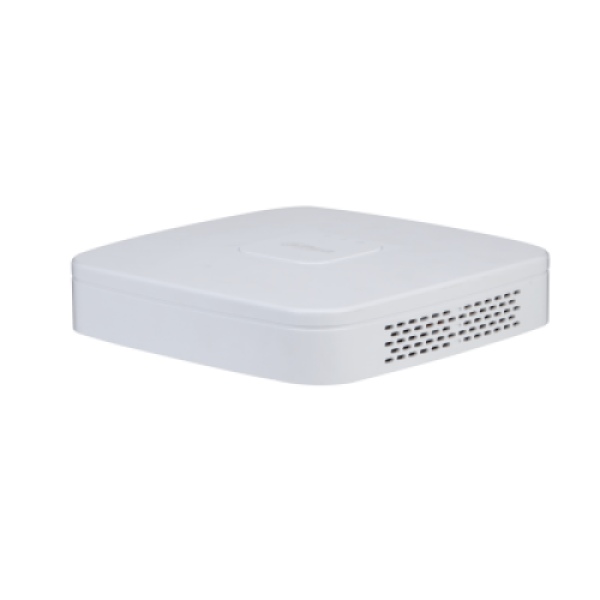

DHI-NVR4116-4KS2/L Network Video Recorder
Product Description: The DHI-NVR4116-4KS2/L is a high-performance network video recorder designed for comprehensive surveillance needs. Equipped with an industrial-grade embedded processor and operating on Embedded Linux, it supports up to 16 channels of video input. This NVR includes advanced AI capabilities, such as facial detection and perimeter protection, along with robust search functionalities. Supporting resolutions from CIF to 8MP, it provides dual video outputs (VGA and HDMI) for simultaneous display. Compatible with various third-party cameras via ONVIF and RTSP protocols, the DHI-NVR4116-4KS2/L ensures efficient management of your surveillance system with support for multiple compression formats and network protocols.
Key Features:
- Channel Support: Up to 16 video channels for effective monitoring.
- Decoding Capability: Can decode up to 8 × 1080p @ 30 fps for smooth playback.
- Advanced AI Functions: Includes face detection and perimeter protection for enhanced security.
- Multi-screen Display Options: Supports viewing configurations of 1, 4, 8, 9, or 16 screens.
- Dual Video Output: Simultaneous output via VGA and HDMI (supports 4K resolution).
- High-Resolution Support: Handles resolutions up to 8MP for clear video quality.
- Third-Party Camera Integration: Compatible with ONVIF and RTSP protocols for flexible camera options.
- Video Compression Formats: Supports Smart H.265, H.265, Smart H.264, H.264, and MJPEG for efficient storage.
- Audio Compression: Supports PCM, G711A, G711U, G726, and AAC for high-quality audio recording.
- Extensive Network Protocol Support: Includes HTTP, HTTPS, TCP/IP, IPv4/IPv6, and more.
- Mobile Access: Compatible with Android and iOS apps for remote surveillance.
- Comprehensive Alarm Management: Features intelligent alarms and linkage options for enhanced security alerts.
Specifications:
- Main Processor: Industrial-grade embedded processor
- Operating System: Embedded Linux
- Operation Interface: Web/Local GUI
- Access Channels: 16 channels
- Network Bandwidth:
- Access: 80 Mbps
- Storage: 80 Mbps
- Forward: 60 Mbps
- Resolution Support: 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, D1
Decoding Capability:
Video Output:
- 1 × VGA
- 1 × HDMI (supports up to 4K)
Multi-screen Display: Options for 1, 4, 8, 9, or 16 views.
Third Party Camera Access: ONVIF, RTSP compatible.
Playback Features:
- Multi-channel Playback: Up to 16 channels.
- Storage Options: 1 SATA III port, supporting up to 10 TB HDD.
Power Supply:
- Power Supply: 12 V DC, 2 A
- Power Consumption: < 10 W (without HDD, idling)
Environmental Conditions:
- Operating Temperature: -10°C to +50°C (+10°F to +122°F)
- Storage Temperature: 0°C to +40°C (+32°F to +104°F)
- Operating Humidity: 10%–93%
- Storage Humidity: 30%–85%
- Operating Altitude: 3,000 m (9,842 ft)
Physical Dimensions:
- Product Dimensions: 204.6 mm × 206.4 mm × 48.1 mm (8.06" × 8.12" × 1.90")
- Net Weight: 0.45 kg (0.99 lb)
- Gross Weight: 1.07 kg (2.36 lb)
Certifications:
- CE (various standards)
- FCC (Part 15 Subpart B)
The DHI-NVR4116-4KS2/L NVR is a reliable solution for advanced surveillance, combining high-quality video management with sophisticated AI capabilities to meet diverse security needs.
