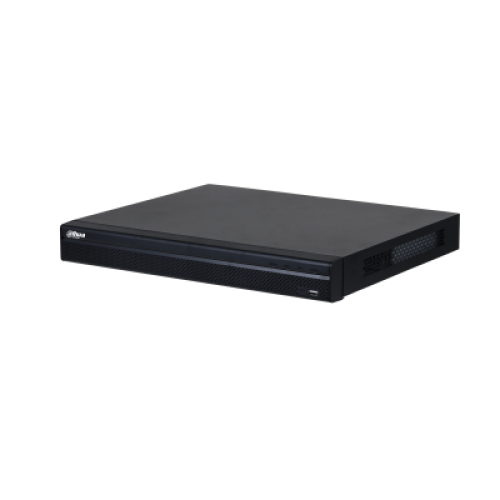

DHI-NVR4216-16P-4KS2/L Network Video Recorder
Product Description: The DHI-NVR4216-16P-4KS2/L is a high-performance network video recorder designed for robust surveillance applications. Equipped with an industrial-grade embedded processor and operating on Embedded Linux, this NVR supports up to 16 video channels with resolutions reaching 8MP. Its advanced AI features, including face detection and perimeter protection, make it a smart choice for comprehensive security installations. The NVR offers versatile video output options with simultaneous VGA and HDMI support and integrates 16 PoE ports for simplified camera connectivity.
Key Features:
- 16 Channel Support: Manage up to 16 video channels with high resolution.
- High Resolution: Supports resolutions up to 8MP for clear, detailed footage.
- Decoding Capability: Can decode 8 × 1080p @ 30 fps for smooth playback.
- Video Output: Features 1 × VGA and 1 × HDMI outputs, allowing simultaneous video source support.
- Multi-screen Display: Options for displaying 1, 4, 8, 9, or 16 views.
- Advanced AI Features: Includes face detection for 4 channels and SMD Plus for 12 channels.
- AI Search Capabilities: Search recorded footage by channel, time, event type, or face attributes.
- Video Compression: Utilizes Smart H.265, H.265, Smart H.264, H.264, and MJPEG for efficient storage.
- Audio Compression: Supports PCM, G711A, G711U, G726, and AAC for versatile audio recording.
- Network Protocols: Comprehensive support, including HTTP, HTTPS, TCP/IP, IPv4/IPv6, and more.
- Mobile Access: Compatible with Android and iOS for remote viewing and management.
- PoE Ports: 16 PoE ports with a total output power of 117W, supporting up to 25.5W per port.
Specifications:
- Main Processor: Industrial-grade embedded processor
- Operating System: Embedded Linux
- Operation Interface: Web/Local GUI
- Access Channels: 16
- Network Bandwidth:
- Access: 160 Mbps
- Storage: 160 Mbps
- Forward: 64 Mbps
- Resolution Support: 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1
Decoding Capability:
Video Output:
- 1 × VGA
- 1 × HDMI (supports up to 4K resolution)
Multi-screen Display: Supports 1, 4, 8, 9, or 16 views.
Third Party Camera Access: ONVIF, RTSP compatible.
Playback Features:
- Multi-channel Playback: Up to 16 channels.
- Storage Options: 2 SATA III ports, supporting up to 10 TB per HDD.
Alarm Inputs/Outputs:
- Alarm Inputs: 4
- Alarm Outputs: 2
Power and Environmental:
- Power Supply: 100 V–240 V, 47 Hz–63 Hz, 3.5 A
- Power Consumption: < 10 W (without HDD, idling)
- Total PoE Power Output: 117W (max 25.5W per port)
- Operating Temperature: -10°C to +55°C (+10°F to +131°F)
- Storage Temperature: 0°C to +40°C (+32°F to +104°F)
- Operating Humidity: 10%–93%
- Storage Humidity: 30%–85%
- Operating Altitude: 3,000 m (9,842 ft)
Physical Dimensions:
- Product Dimensions: 375 mm × 327.4 mm × 53.8 mm (14.76" × 12.89" × 2.12")
- Net Weight: 2.63 kg (5.80 lb)
- Gross Weight: 3.91 kg (8.62 lb)
Certifications:
- CE (various standards)
- FCC (Part 15 Subpart B)
The DHI-NVR4216-16P-4KS2/L NVR is designed to meet the demands of high-performance surveillance, integrating extensive functionality with advanced analytics to ensure effective monitoring in various environments.
