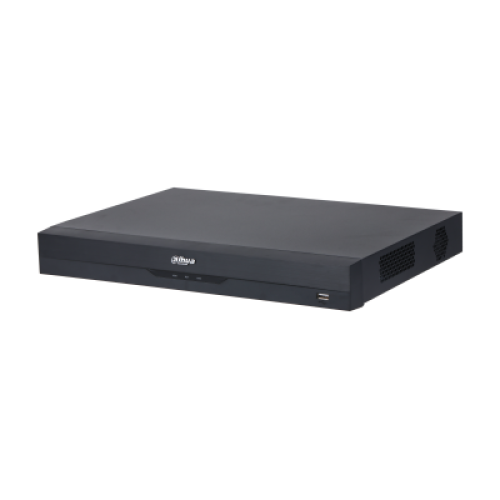

DHI-NVR4216-4KS2/L Network Video Recorder
Product Description: The DHI-NVR4216-4KS2/L is a robust network video recorder engineered for advanced surveillance applications. It features an industrial-grade embedded processor and operates on Embedded Linux, enabling it to manage up to 16 channels of video input with support for high resolutions up to 8MP. With advanced AI functionalities like face detection and perimeter protection, this NVR ensures effective monitoring. It supports dual video output via VGA and HDMI, along with versatile storage options and strong network capabilities, making it an ideal choice for comprehensive surveillance setups.
Key Features:
- Channel Support: Up to 16 video channels for effective surveillance management.
- High-Resolution Support: Handles resolutions up to 8MP for clear video footage.
- Decoding Capability: Can decode 8 × 1080p @ 30 fps for smooth playback.
- Dual Video Output: Simultaneous output via 1 × VGA and 1 × HDMI (supports 4K resolution).
- Multi-screen Display: Options for displaying 1, 4, 8, 9, or 16 views.
- Advanced AI Features: Includes face detection for 4 channels and perimeter protection.
- SMD Plus Functionality: Supports intelligent motion detection for up to 12 channels.
- Flexible Video Compression: Supports Smart H.265, H.265, Smart H.264, H.264, and MJPEG.
- Audio Compression Formats: PCM, G711A, G711U, G726, and AAC for versatile audio recording.
- Comprehensive Network Protocol Support: Including IPv4/IPv6 and P2P for enhanced connectivity.
- Mobile Access: Compatible with Android and iOS apps for remote surveillance.
- Playback Capabilities: Up to 16 channels for playback with advanced search and backup options.
Specifications:
- Main Processor: Industrial-grade embedded processor
- Operating System: Embedded Linux
- Operation Interface: Web/Local GUI
- Access Channels: 16
- Network Bandwidth:
- Access: 160 Mbps
- Storage: 160 Mbps
- Forward: 64 Mbps
- Resolution Support: 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1
Decoding Capability:
Video Output:
- 1 × VGA
- 1 × HDMI (supports up to 4K)
Multi-screen Display: Supports 1, 4, 8, 9, or 16 views.
Third Party Camera Access: ONVIF, RTSP compatible.
Playback Features:
- Multi-channel Playback: Up to 16 channels.
- Storage Options: 2 SATA III ports, supporting up to 10 TB per HDD.
Power Supply:
- Power Supply: 12 V DC, 4 A
- Power Consumption: < 10 W (without HDD, idling)
Environmental Conditions:
- Operating Temperature: -10°C to +55°C (+10°F to +131°F)
- Storage Temperature: 0°C to +40°C (+32°F to +104°F)
- Operating Humidity: 10%–93%
- Storage Humidity: 30%–85%
- Operating Altitude: 3,000 m (9,842 ft)
Physical Dimensions:
- Product Dimensions: 375 mm × 282.4 mm × 53 mm (14.76" × 11.12" × 2.09")
- Net Weight: 1.51 kg (3.33 lb)
- Gross Weight: 2.76 kg (6.08 lb)
Certifications:
- CE (various standards)
- FCC (Part 15 Subpart B)
The DHI-NVR4216-4KS2/L NVR is a powerful solution for advanced surveillance needs, combining high-quality video management with cutting-edge AI capabilities for optimal security monitoring.
