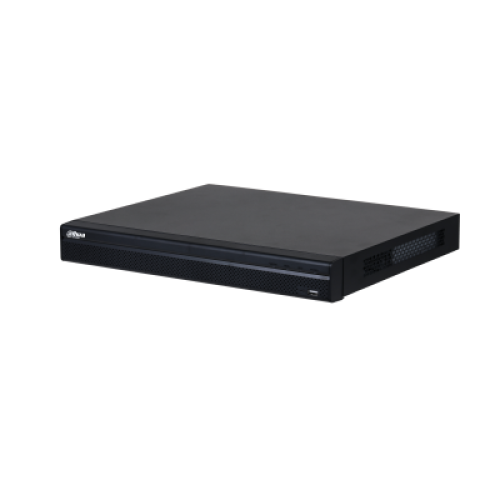

DHI-NVR4232-4KS2/L Network Video Recorder
Product Overview: The DHI-NVR4232-4KS2/L is a high-performance Network Video Recorder (NVR) designed for comprehensive video surveillance solutions. Featuring advanced AI capabilities, high-resolution support, and extensive channel management, it is perfect for both large-scale and intricate surveillance setups. This model is equipped with AI search features, multi-channel playback, and robust network and storage options, making it ideal for demanding security environments.
Key Features:
- Channel Support: Manage up to 32 channels with high-resolution recording and playback.
- Resolution Capability: Supports up to 8MP (4K) resolution for high image clarity and detail.
- Decoding Capability: Decodes 8 × 1080p @ 30 fps simultaneously.
- Video Output: 1 × VGA and 1 × HDMI outputs for simultaneous video source output.
- Multi-screen Display: Flexible display options including 1, 4, 8, 9, 16, 25, and 32 views.
- AI Functions: Advanced AI capabilities including face detection (4 channels) and SMD Plus (12 channels) with intelligent search options.
- AI Search Features: Search recorded footage by channel, time, event type, or specific face attributes.
- Video Compression: Smart H.265+, H.265, Smart H.264+, H.264, and MJPEG for efficient storage.
- Audio Compression: Supports PCM, G711A, G711U, G726, and AAC for high-quality audio.
- Network Protocols: Comprehensive support for various protocols including HTTP, HTTPS, TCP/IP, IPv4/IPv6, and more.
- Mobile Access: Compatible with Android and iOS for remote viewing and management.
Specifications:
- Main Processor: Industrial-grade embedded processor
- Operating System: Embedded Linux
- Operation Interface: Web and local GUI
- Network Bandwidth:
- Access: 160 Mbps
- Storage: 128 Mbps
- Forward: 48 Mbps
- Resolution Support: 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1
Video Output:
- 1 × VGA
- 1 × HDMI (supports up to 4K resolution)
Multi-screen Display: Supports 1, 4, 8, 9, 16, 25, and 32 views.
Third-party Camera Access: Compatible with ONVIF and RTSP.
Record Playback:
- Multi-channel Playback: Up to 16 channels
- Playback Modes: Manual, alarm recording, SMD recording, smart recording
- Backup: Supports USB storage device
- Playback Functions: Includes play, pause, stop, slow, quick, backward, full screen, and more.
Alarm Functions:
- General Alarm: Motion detection, privacy masking, video loss, and more.
- Intelligent Alarm: Face detection, perimeter protection, IVS, people counting, and heat map features.
External Ports:
- Audio Input: 1 × RCA
- Audio Output: 1 × RCA
- HDD Ports: 2 SATA III (up to 10 TB per HDD)
- Alarm Inputs: 4
- Alarm Outputs: 2
- USB Ports: 2 (1 × front USB2.0, 1 × back USB2.0)
Power and Environmental:
- Power Supply: 12 V DC, 4A
- Power Consumption: < 5.6 W (without HDD)
- Operating Temperature: -10°C to +55°C (+10°F to +131°F)
- Storage Temperature: 0°C to +40°C (+32°F to +104°F)
- Operating Humidity: 10%–93%
- Storage Humidity: 30%–85%
- Operating Altitude: 3,000 m (9,842 ft)
Physical Dimensions:
- Product Dimensions: 375.0 mm × 282.9 mm × 53.0 mm (14.76" × 11.14" × 2.09")
- Net Weight: 1.5 kg (3.31 lb)
- Gross Weight: 2.6 kg (5.73 lb)
Certifications:
- CE (multiple standards)
- FCC (Part 15 Subpart B)
The DHI-NVR4232-4KS2/L NVR is designed to meet the demands of modern surveillance systems, combining high performance with advanced features for efficient and reliable monitoring.
