Product Description:

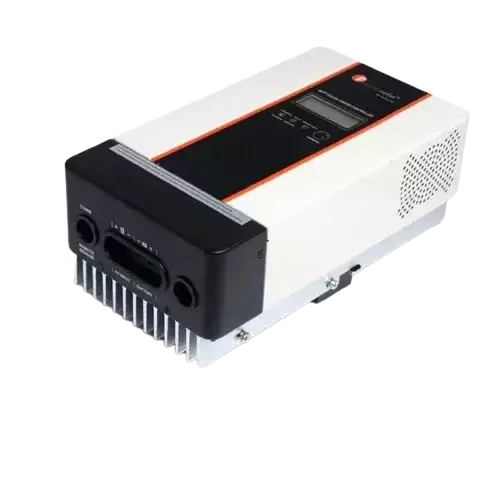

The Felicity 30A MPPT 12V/24V Charge Controller is an advanced solar charge controller designed to maximize the efficiency of solar energy systems. Using Maximum Power Point Tracking (MPPT) technology, this controller optimizes solar power harvesting, ensuring faster and more efficient charging of 12V and 24V battery systems. The 30A current capacity provides ample support for medium-sized solar setups, offering stable, reliable charging with advanced protection features. The user-friendly interface and real-time monitoring capabilities make it ideal for homeowners and small businesses looking for efficient, cost-effective solar energy management.
Key Features:
- MPPT (Maximum Power Point Tracking) technology for maximum solar energy conversion
- 30A current capacity supports medium-sized solar systems
- 12V/24V system compatibility, making it versatile for different solar setups
- High conversion efficiency for faster charging and better performance
- Wide input voltage range (up to 50V) to suit a variety of solar panel configurations
- Multiple protection features, including over-voltage, over-current, over-temperature, and reverse polarity
- Real-time LCD display for easy monitoring of charging status and system performance
- Automatic battery type recognition for lead-acid, gel, and lithium-ion batteries
- Temperature compensation to optimize battery performance in varying temperatures
- User-selectable charge parameters for different battery types and charging needs
- Efficient heat dissipation design for reliable performance in high temperatures
- Overcharge protection to ensure battery longevity and prevent damage
- Compact design for easy installation in small spaces or tight areas
Specifications:
- Model: Felicity 30A MPPT 12V/24V Charge Controller
- Rated Current: 30A
- Input Voltage Range: 12V/24V DC (Auto-detection)
- Max PV Input Voltage: 50V
- Battery Voltage: 12V or 24V (Auto-detection)
- Charging Efficiency: ≥ 98%
- Temperature Compensation: Yes
- Operating Temperature Range: -20°C to 60°C
- Display Type: LCD for real-time system status
- Protections: Over-voltage, over-current, over-temperature, reverse polarity, overcharge protection
- Dimensions: 160mm x 100mm x 40mm
- Weight: 0.5kg
- Cooling Type: Natural convection (no fan)
- Certifications: CE, RoHS, IEC
