Product Description

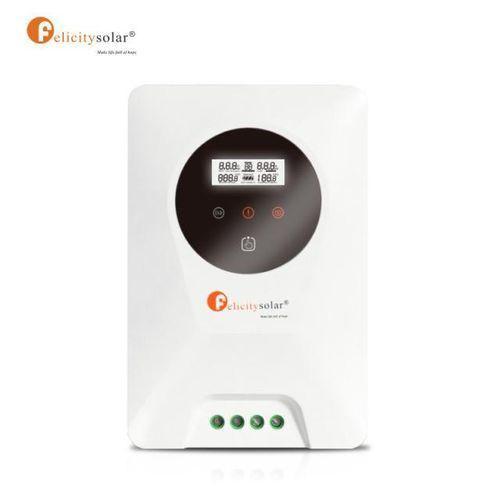

The Felicity 30A MPPT Solar Charge Controller is a high-performance device designed to optimize the efficiency of your solar energy system. Utilizing Maximum Power Point Tracking (MPPT) technology, it ensures maximum energy harvest from your solar panels. With an automatic system voltage detection feature, it supports 12V, 24V, and 48V battery systems, making it versatile for various solar applications. Its robust design and advanced features make it suitable for both residential and commercial solar installations.
Key Features
MPPT technology increases energy harvest by up to 25%–30% compared to PWM controllers
Up to 98% peak conversion efficiency
Automatically detects and supports 12V, 24V, and 48V battery systems
Maximum charging current of 30A
Real-time LCD display shows charge voltage, battery voltage, and output current
Compatible with lead-acid, AGM, gel, and lithium batteries
Reverse polarity protection
Overcharge and overdischarge protection
Over-temperature protection for safe operation
Remote monitoring support via SNMP/MODBUS
User-friendly interface for easy setup and use
Built-in battery temperature sensor adjusts charging based on temperature
Specifications
Model: FL-SCCM3024
Maximum solar input voltage: 95V DC
Nominal system voltage: 12V, 24V, or 48V DC (auto detection)
Maximum battery current: 30A
DC array MPPT voltage range:
12VDC: 15–80V
24VDC: 30–80V
48VDC: 60–80V
Maximum input power:
Charging algorithm: 3-step (Bulk, Absorption, Float)
Temperature compensation coefficient: -5mV/°C/cell
Temperature compensation range: 0°C to +50°C
Charging set points:
Overcharge voltage: 15V / 30V / 60V
Overcharge restart voltage: 14.5V / 29V / 58V
Battery discharge voltage: 8.5V / 17V / 34V
Battery overdischarge voltage: 9V / 18V / 36V
Dimensions (H x W x D): 190 x 151 x 74 mm
Weight: 1.2 kg
Ambient temperature range: 0°C to +50°C
Storage temperature: -40°C to 75°C
Humidity: 0%–90% RH (non-condensing)
Enclosure: IP31 (indoor use)
