Product Description:
The Felicity 45A MPPT 12V/48V Charge Controller is an advanced and efficient solar charge controller designed to maximize the performance of solar systems with 12V and 48V battery setups. Equipped with Maximum Power Point Tracking (MPPT) technology, it optimizes solar energy conversion, providing fast and efficient charging. With a robust 45A current capacity, it is perfect for medium to large-scale solar installations. This controller features an intuitive LCD display for real-time monitoring, automatic battery type recognition, and comprehensive protection features, ensuring safe and reliable performance.
Key Features:
- MPPT (Maximum Power Point Tracking) technology for maximum solar energy harvesting
- 45A current capacity ideal for medium to large solar energy systems
- 12V/48V system compatibility for flexible use with different battery types
- Up to 99% charging efficiency for rapid and reliable power conversion
- Wide input voltage range (up to 100V) to accommodate various solar panel configurations
- LCD display for real-time monitoring of charging status, battery levels, and system performance
- Multiple protection features, including over-voltage, over-current, over-temperature, reverse polarity, and overcharge protection
- Temperature compensation to optimize charging in varying environmental conditions
- Automatic battery type recognition supporting lead-acid, gel, and lithium-ion batteries
- Adjustable charging parameters for different battery configurations and solar setups
- Fanless design for quiet operation and reliable heat dissipation
- User-friendly interface with easy navigation for setup, adjustments, and monitoring
Specifications:

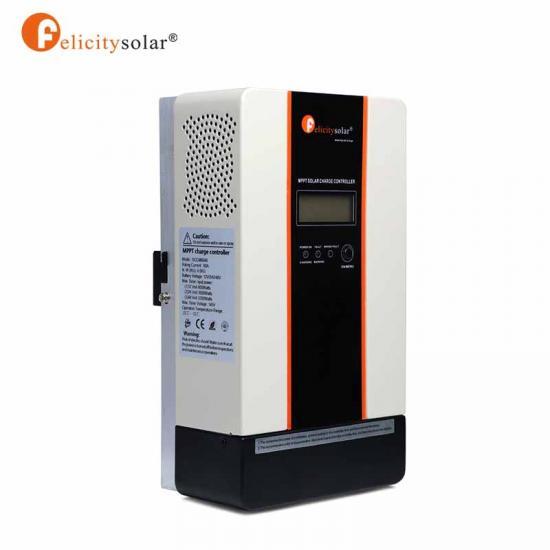

- Model: Felicity 45A MPPT 12V/48V Charge Controller
- Rated Current: 45A
- Input Voltage Range: 12V/48V DC (Auto-detection)
- Max PV Input Voltage: 100V
- Battery Voltage: 12V or 48V (Auto-detection)
- Charging Efficiency: ≥ 98%
- Temperature Compensation: Yes
- Operating Temperature Range: -20°C to 60°C
- Display Type: LCD for real-time system status and monitoring
- Protections: Over-voltage, over-current, over-temperature, reverse polarity, overcharge protection
- Dimensions: 200mm x 130mm x 50mm
- Weight: 0.8kg
- Cooling Type: Natural convection (fanless design)
- Certifications: CE, RoHS, IEC
