Product Description:

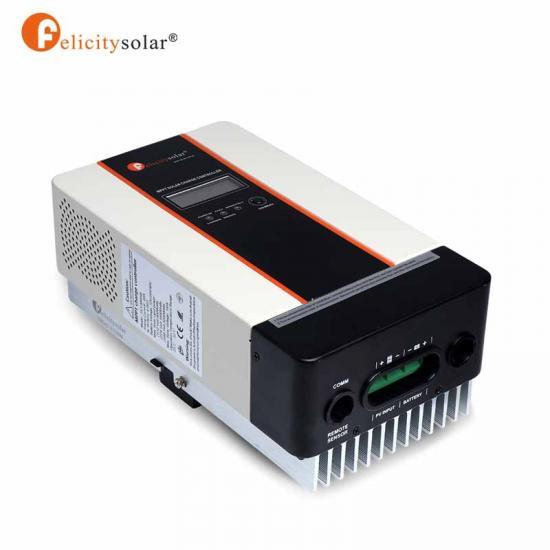

The Felicity 60A MPPT 12V/48V Charge Controller is a high-performance solution for efficiently managing and optimizing solar energy systems. With a robust 60A current capacity, this controller is designed for larger solar power installations, offering the flexibility to support 12V and 48V battery configurations. It features Maximum Power Point Tracking (MPPT) technology, ensuring maximum energy conversion and faster charging of batteries. The user-friendly LCD display allows for real-time monitoring, while comprehensive protection features guarantee safe and reliable operation, making it an ideal choice for both residential and commercial solar setups.
Key Features:
- MPPT (Maximum Power Point Tracking) technology for optimal solar power conversion and maximum energy harvest
- 60A current capacity supports larger and high-demand solar systems
- 12V/48V system compatibility for versatile use with different battery configurations
- High charging efficiency of up to 99%, ensuring fast and efficient battery charging
- Wide input voltage range (up to 100V) for flexibility with various solar panel configurations
- LCD display for easy monitoring of charging status, battery voltage, and system performance
- Multiple protection features including over-voltage, over-current, over-temperature, reverse polarity, and overcharge protection
- Temperature compensation to optimize charging in varying temperature conditions
- Automatic battery type recognition supports lead-acid, gel, and lithium-ion batteries
- Adjustable charging parameters to suit different battery types and solar setups
- Fanless design for quieter operation and reliable heat dissipation
- User-friendly interface with easy navigation for setup, adjustments, and system monitoring
- High-quality build ensures long-lasting durability and reliability in harsh environments
Specifications:
- Model: Felicity 60A MPPT 12V/48V Charge Controller
- Rated Current: 60A
- Input Voltage Range: 12V/48V DC (Auto-detection)
- Max PV Input Voltage: 100V
- Battery Voltage: 12V or 48V (Auto-detection)
- Charging Efficiency: ≥ 99%
- Temperature Compensation: Yes
- Operating Temperature Range: -20°C to 60°C
- Display Type: LCD for real-time system monitoring
- Protections: Over-voltage, over-current, over-temperature, reverse polarity, overcharge protection
- Dimensions: 210mm x 140mm x 55mm
- Weight: 1.0kg
- Cooling Type: Natural convection (fanless design)
- Certifications: CE, RoHS, IEC
