Product Description:

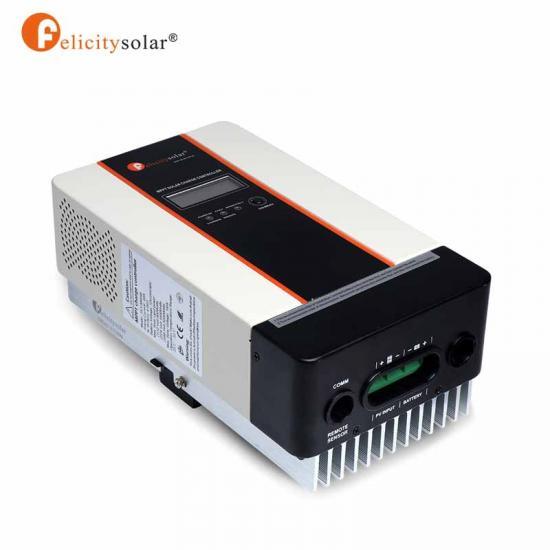

The Felicity 80A MPPT 48V Charge Controller is a powerful, high-performance solar charge controller designed for large-scale solar systems. With a robust 80A current capacity and optimized for 48V battery configurations, this controller uses advanced Maximum Power Point Tracking (MPPT) technology to maximize solar energy conversion efficiency. The controller ensures faster and more efficient charging, extending battery life while offering superior protection features. Ideal for residential, commercial, and industrial solar energy setups, it includes a user-friendly LCD display for real-time monitoring, making it an excellent choice for high-demand solar installations.
Key Features:
- MPPT (Maximum Power Point Tracking) technology for maximum solar energy harvest and efficient power conversion
- 80A current capacity supports large solar energy systems with high power demands
- 48V battery system compatibility for flexibility with various solar panel and battery setups
- Up to 99% charging efficiency, ensuring rapid and reliable charging
- Wide input voltage range (up to 150V) for a wide variety of solar panel configurations
- LCD display for real-time monitoring of system status, battery levels, and charging performance
- Multiple protection features including over-voltage, over-current, over-temperature, reverse polarity, and overcharge protection
- Temperature compensation for optimized charging based on environmental conditions
- Automatic battery type recognition for lead-acid, gel, and lithium-ion batteries
- Adjustable charging parameters for different battery types and system needs
- Fanless design for quiet operation and efficient heat dissipation
- User-friendly interface for easy setup, monitoring, and adjustments
Specifications:
- Model: Felicity 80A MPPT 48V Charge Controller
- Rated Current: 80A
- Input Voltage Range: 48V DC
- Max PV Input Voltage: 150V
- Battery Voltage: 48V (auto-detection)
- Charging Efficiency: ≥ 99%
- Temperature Compensation: Yes
- Operating Temperature Range: -20°C to 60°C
- Display Type: LCD for real-time system status and monitoring
- Protections: Over-voltage, over-current, over-temperature, reverse polarity, overcharge protection
- Dimensions: 240mm x 180mm x 60mm
- Weight: 1.5kg
- Cooling Type: Natural convection (fanless design)
- Certifications: CE, RoHS, IEC
