Product Description

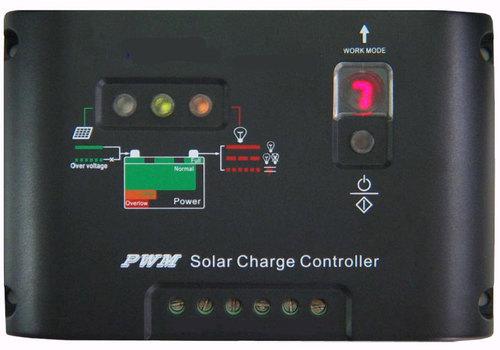

The PWM 80A/96V Solar Charge Controller is built for high-capacity off-grid solar systems, supporting up to 96V battery banks with an impressive 80A charge current. Designed using advanced PWM (Pulse Width Modulation) technology, it ensures stable and efficient charging while protecting batteries from overcharging, over-discharging, and system faults. Engineered for reliability and durability, it’s ideal for industrial-grade, residential, or commercial solar power setups requiring robust power handling.
Key Features
High-capacity 80A charging current for large solar installations
Supports system voltage up to 96V
Advanced PWM charging technology for efficient battery health management
Automatically detects and supports 12V / 24V / 48V / 72V / 96V systems
Intelligent 3-stage charging: Bulk, Boost, and Float
Protection against overcharge, over-discharge, overload, and short circuit
Reverse polarity protection on solar and battery terminals
Built-in temperature compensation for accurate voltage control
LED/LCD display (depending on model) for real-time status monitoring
Load output control with configurable settings
Compatible with lead-acid, sealed, gel, flooded, and lithium batteries
Fan cooling system for thermal management under heavy loads
Specifications
Rated charge current: 80A
System voltage: 12V / 24V / 36V / 48V / 60V / 72V / 96V (auto-detect)
Max PV input voltage: typically 130V (check specific model for exact rating)
Charging method: PWM (multi-stage: Bulk, Boost, Float)
Battery types supported: Lead-acid (sealed, gel, flooded), Lithium
Overcharge protection voltage: adjustable per system voltage
Over-discharge protection voltage: adjustable
Operating temperature: -20°C to +55°C
Cooling: Automatic fan control
Self-consumption: ≤15mA
Load current capacity: up to 80A
Display: LED/LCD for status and error codes
Enclosure: IP30 or higher (model dependent)
Dimensions: approx. 260mm x 180mm x 100mm (varies by brand)
Weight: approx. 2.5 – 4 kg depending on housing design
