Product Description:
The SS Power 20kVA/192V Pure Sine Wave Inverter (NB) is a high-performance power solution designed to meet the needs of larger residential, commercial, and industrial applications. With an impressive 20kVA continuous power output and 192V DC input, it ensures reliable, clean, and stable power for sensitive equipment. Featuring a pure sine wave output, this inverter is perfect for environments that require high-quality power, including backup power systems and off-grid applications. Built with advanced protection and monitoring features, it provides safety, durability, and ease of use.
Key Features:
20kVA Power Output: Provides 20kVA (16,000W) continuous power to support heavy loads and critical systems.
192V DC Input: Supports a 192V battery bank, offering efficient power conversion and extended battery life.
Pure Sine Wave Output: Delivers smooth, clean, and stable AC power, ideal for sensitive electronics, appliances, and industrial equipment.
Surge Capacity: Capable of handling surge loads up to 30kVA, providing the necessary power for appliances with high startup requirements.
High Efficiency: Over 90% efficiency in power conversion ensures reduced energy loss and lower operating costs.
Integrated 40A Battery Charger: Built-in charger for quickly recharging the 192V battery system, ensuring reliable performance.
Multiple Protections: Overload, short circuit, overvoltage, undervoltage, and over-temperature protection for safe operation.
Intelligent Cooling System: Automatic fan speed adjustment to optimize cooling based on temperature and load, ensuring efficient operation.
LCD Display: Easy-to-read LCD display to monitor key parameters like battery voltage, output voltage, current, and operational status.
User-Friendly Interface: Simple installation and operation with an intuitive control panel.
Versatile Applications: Suitable for residential, commercial, industrial, and off-grid applications requiring large amounts of power.
Durable and Compact Design: Robust build quality for long-term reliability in demanding environments.
Environmentally Friendly: Low harmonic distortion reduces energy wastage and minimizes environmental impact.
Specifications:

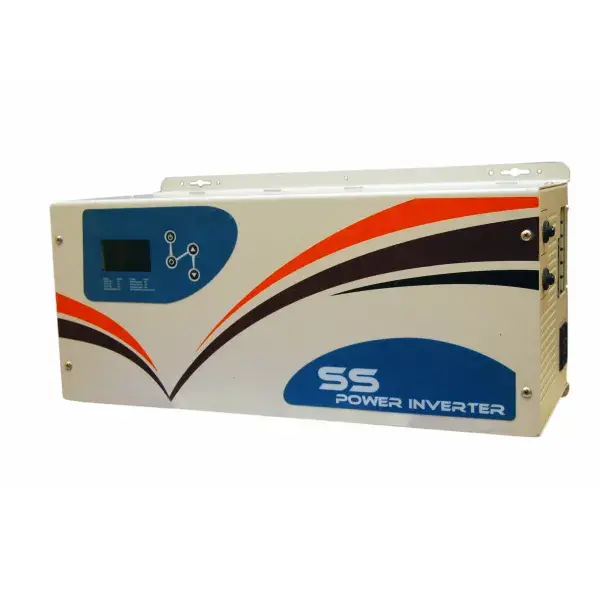

Model: SS Power 20kVA/192V Pure Sine Wave Inverter (NB)
Power Output: 20kVA (16,000W continuous)
Input Voltage: 192V DC
Output Voltage: 230V AC (single phase)
Output Type: Pure sine wave (stable, clean power for sensitive devices)
Frequency: 50Hz ± 0.5Hz
Surge Capacity: 30kVA for 5 seconds
Efficiency: ≥ 90% (at full load)
Battery Charger: Built-in 40A charger for fast battery recharge
Cooling System: Intelligent fan cooling with auto-adjusting fan speed based on load and temperature
Protections: Overload, short circuit, over/under voltage, over temperature, and reverse polarity protection
LCD Display: Displays battery voltage, output voltage, current, system status, and error notifications
Dimensions: 560 x 480 x 200 mm (W x D x H)
Weight: 35 kg
Operating Temperature: 0°C to 50°C
Humidity: 0 to 95% RH (non-condensing)
Certifications: CE, ISO 9001 certified for safety and quality
Warranty: 2 years from the date of purchase
